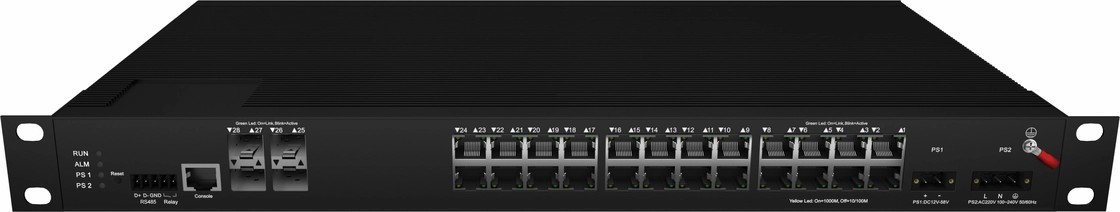

75 Series 2XSFP 24G Industrial Ethernet Switches Rack Mounted 24 Port POE Switch
|
| MOQ: | 10 |
| Price: | USD |
PRODUCT PROFILE
This device is a 24-port 10/100/1000 Base-T unmanaged industrial Ethernet fast switch with 2 Gigabit fiber ports. It supports Power over Ethernet (PoE) and is powered solely by DC. With features such as fanless heat dissipation circuit design, a wide operating temperature range, and a high protection level, it offers exceptional industrial-grade quality, ensuring durability in extreme conditions such as high/low temperatures and lightning protection. It enhances the reliability and security of industrial networks, making it suitable for deployments in applications like rail transportation, safe cities, intelligent traffic systems, outdoor surveillance, and other environments.
PRODUCT SIZE
PRODUCT Specifications
| Provider Mode Ports | |
| Fixed port | 2*1000 Base-X, 24*10/100/1000 Base－T |
| Power interface | Phoenix terminal, dual power supply |
| LED Indicators | PWR,Link/ACT LED |
| Cable type&Transmission distance | |
| Twisted-pair | 0-100m(CAT5e,CAT6) |
| Monomode optical fiber | 20/40/60/80/100KM |
| Multimode optical fibre | 550m |
| Network Topology | |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Electrical Specifications | |
| input voltage |
None PoE:DC12-58V/AC 100-240V 50-60HZ |
| Total Power consumption |
None PoE <36W |
|
|
|
| PoE port | 1-24 |
| PoE Protocol | 802.3af,802.3at |
| Pin Assignment | 1,2,3,6 |
| Layer 2 Switching | |
| Switching capacity | 68G |
| Packet forwarding rate | 50.59Mpps |
| MAC address table | 16K |
| Buffer | 8M |
| Forwarding delay | <10us |
| MDI/MDIX | Support |
| Jumbo Frame | Support 10Kbytes |
| Environment | |
| Operating temperature | -40℃~+70℃ |
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 5%~95% non-condensing |
| Thermal methods | Fanless design ,self cooling |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product size | 440*245*44mm |
| Installation Method | Rack-mounted |
| Weight | 3.6KG |
| EMC&INGRESS PROTECTION | |
| IP Level | IP40 |
| Surge protection of Power | IEC 61000-4-5 Level 3(4KV/2KV)(8/20us) |
| Surge protection of Ethernet port | IEC 61000-4-5 Level 3(4KV/2KV)(10/700us) |
| RS | IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level4(30A/m) |
| DIP | IEC 61000-4-11 Level3 (10V) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free fall | 0.5m |
| Authentication | |
| Authentication | CE/FCC/RoHS |
| Accessories | |
| Accessories | Device, terminal, Qualified certificate, User manual (optional) |
| Optional model | |
| -16GT-HR | 16*10/100/1000M RJ45, Mixed Power Supply of AC and DC |
| -16GP-R | 16*10/100/1000M RJ45,Support PoE&PoE+, Dual DC power supply |
| -2GX16GT-HR | 2*1000M SFP,16*10/100/1000M RJ45, Mixed Power Supply of AC and DC |
| -2GX16GP-R | 2*1000M SFP,16*10/100/1000M RJ45,Support PoE&PoE+, Dual DC power supply |
| -24GT-HR | 24*10/100/1000M RJ45, Mixed Power Supply of AC and DC |
| -24GP-R | 24*10/100/1000M RJ45,Support PoE&PoE+, Dual DC power supply |
| -2GX24GT-HR | 2*1000M SFP,24*10/100/1000M RJ45, Mixed Power Supply of AC and DC |
| -2GX24GP-R | 2*1000M SFP,24*10/100/1000M RJ45,Support PoE&PoE+, Dual DC power supply |
| -4GX24GT-HR | 2*1000M SFP,24*10/100/1000M RJ45, Mixed Power Supply of AC and DC |
| -4GX24GP-R | 2*1000M SFP,24*10/100/1000M RJ45,Support PoE&PoE+, Dual DC power supply |
